Water-Cooled Cold Style 4 Stroke 300cc Motorcycle Engine for Tricycle
1
3
4
763813fc99692dc82128a39c744a71b
54a7e49f2ce0145579af72e6925530f
Water-Cooled Cold Style 4 Stroke 300cc Motorcycle Engine for Tricycle

Water-Cooled Cold Style 4 Stroke 300cc Motorcycle Engine for Tricycle

Displacement(ml): 275 Weight(Kg): 35.5 Dimension(mm): 341x359x454 Compression Ratio: 10.4:1 Cold Style: water cool

Contact US

Share to



Technical Parameters for your 300cc Tricycle Engine:
Engine IWodel 174MN-2
Engine Name HW300 Water cool
Engine Type Single Cylinder,4 Stroke, Water Cooled, Diagonal engine, camshaft downward
Displacement(ml) 275
Dimensionimmi 341x359x454
N.W(kg) 35.5
Max Power(kw/rpm) 12 5(1+-1096)6500(1+-596
Max Torgue(N.m/rpm. 21(1+-10%)4500(1+-5%)
Compression Ratio 10.4:1
Bore*Stroke(mm) 74*64
Ignition Type CDI
Lubrication Type Pressure and Splash
Min. Fuel Consumption(g/Kw.h) <354
Starting Type Electric/Kick Start
Carburetor PZ30
Clutch Manual Wet Multi Plate
Gear Shift Constant mesh two stage transmission, 5-speed cearshift



Water-Cooled Cold Style 4 Stroke 300cc Motorcycle Engine for Tricycle



Quality Supervison
By choosing Longdo's product, you can get the best quality product and warranty service.

For our client success, all product from Longdo are under strict quality control process. We ensure all products from Longdo will comply with local and international stardard and will pass additional verification internally.



Depends on different stage, there will be different checking ratio. furthermore,for some key and high-performance-requested parts, we verify and test them in the particular lab which have a long time relationship with us. so that we can make sure the product is perfect before delivering to our client.




Quality Supervison Process







Flow chart of business processing





Process Supervison

Longdo is running deeply customized SAP ERP system as the core data center , which enables us to effectively and flexibly track or solve product-relevant issues for clients, including inquiry of product information, quotation, order placement, purchase and production plan, stocking, shipment, settlement and service, so as to minimize manual data processing and increase delivery efficiency.





Quality Warranty

Longdo guarantees product quality through quality control and process control, aiming at avoiding quality problems before shipment. Meanwhile, Longdo takes each quality advice from clients seriously and accepts quality-relevant claims caused by Longdo’s reason within a limited time, and makes immediate compensation and quality improvement action. “New quality performance” project is the comprehensive new 18 months quality warranty commitment to clients, which can finally be achieved by our always effort in quality and performance improvement.



By far, the products provided by Longdo have all passed international safety or quality authentication standard (such as body parts lighting system and braking system products have be certified by E-mark in one time), which further proves the safety and reliability of our products.

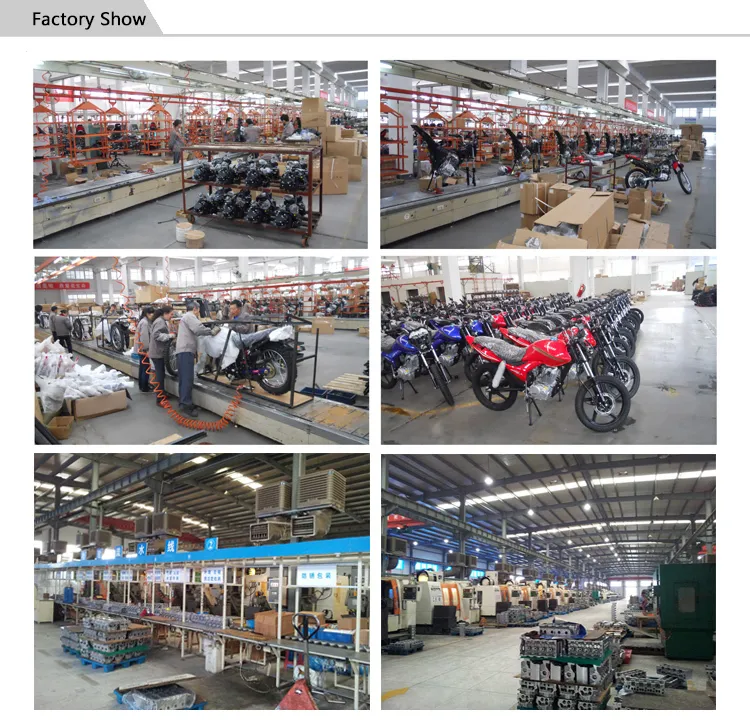

Production Line

Casting
JAPANESE FANUC ROBOT POURING
JAPANESE FANUC ROBOT POURING
LIQUID DIE FORGING
LIQUID DIE FORGING
JAPANESE TECHNO LOW PRESSURE DIE CASTING LINE
JAPANESE TECHNO LOW PRESSURE DIE CASTING LINE
HEAT TREATMENT LINE
HEAT TREATMENT LINE
Testing
3D SCANNER
3D SCANNER
COGNEX INSIGHT TRACEABILITY SYSTEM
COGNEX INSIGHT TRACEABILITY SYSTEM
AIR DECAY LEAKAGE TESTER
AIR DECAY LEAKAGE TESTER
GERMAN NIEBERDING GAUGE FOR VALVE SEAT & GUIDE
GERMAN NIEBERDING GAUGE FOR VALVE SEAT & GUIDE
